The size of the server rack depends on the network devices you intend to place inside. In our shop, the server racks' external dimensions are standard. In this article, we illustrate how much space you have inside using drawings.
Various External Dimensions
Wall racks and server racks are available in various sizes. A wall rack has a depth of 450 or 600 mm. A standing server rack is 600, 800, 1000, or 1200 mm deep.
Determining the Needed Rack Depth
To determine the rack depth you need, measure the depth of the deepest network device that will be placed in the server rack. Add about 5 to 10 centimeters to this depth. This space should be reserved for cables and air circulation. Once you've done this calculation, you'll know the depth of the rack you need.
Inside a wall or server rack, there are four vertical styles, one at each corner of the rack. You attach network devices to these attachment styles. The attachment styles can be adjusted in depth. This is useful if, for example, you want to attach a heavy device not only at the front but also at the back. You can also adjust the distance to fit your server's telescopic rails. By placing the vertical styles close together or further apart, you make the distance fit precisely.
Standard 19 Inch Width
The mounting frame of server and wall racks is standard 19 inches, or 48.26 cm. And because 19 inches is a standard width of networking equipment, your 19-inch devices will therefore always fit exactly into a 19-inch server rack.
Wall mount racks 450 mm deep

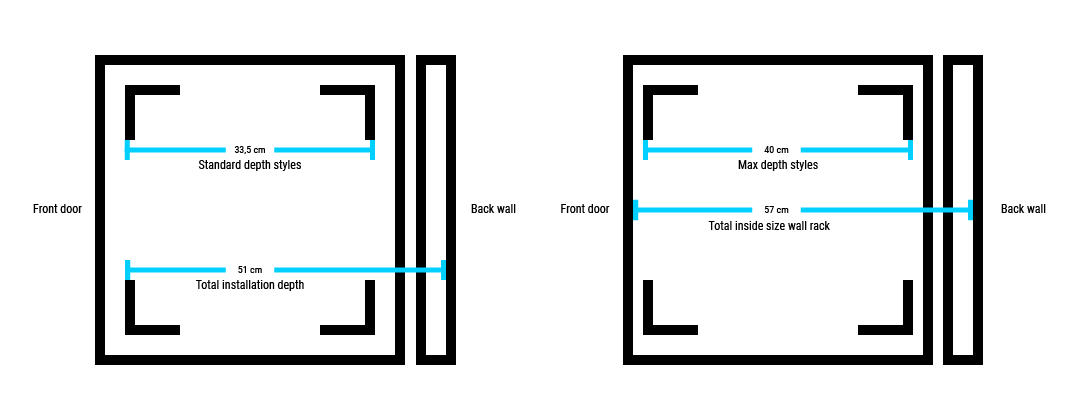

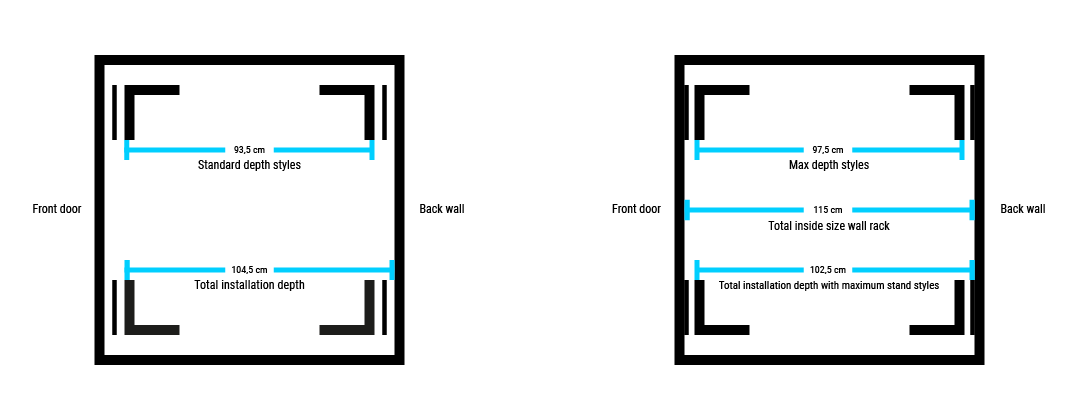

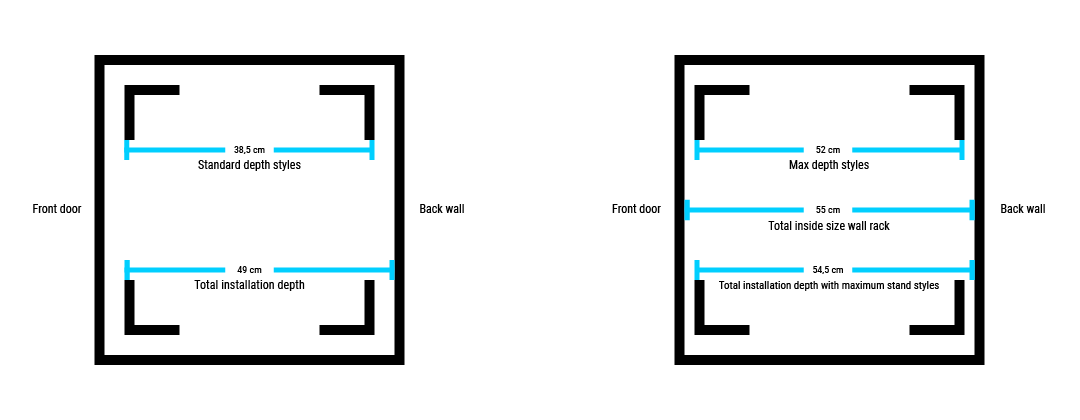

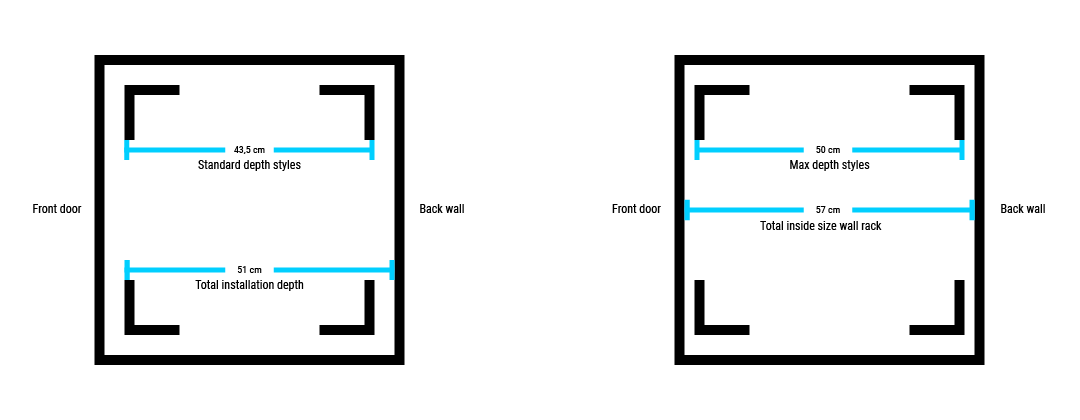

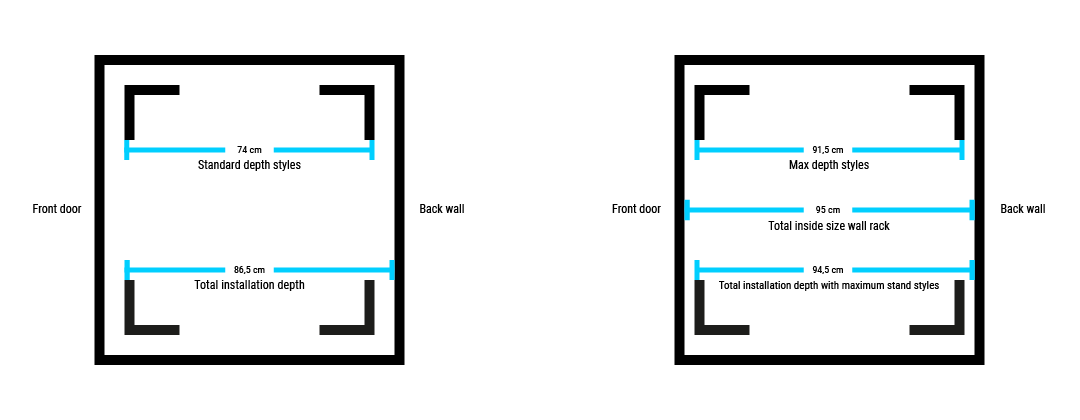

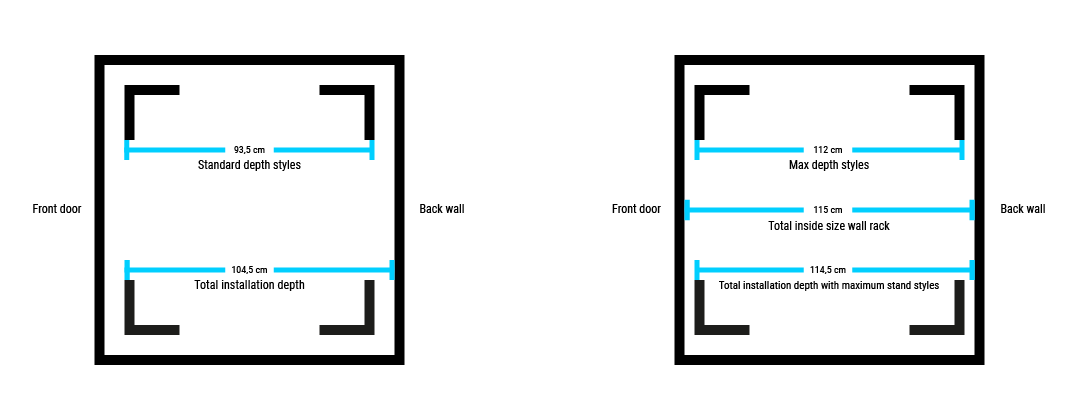

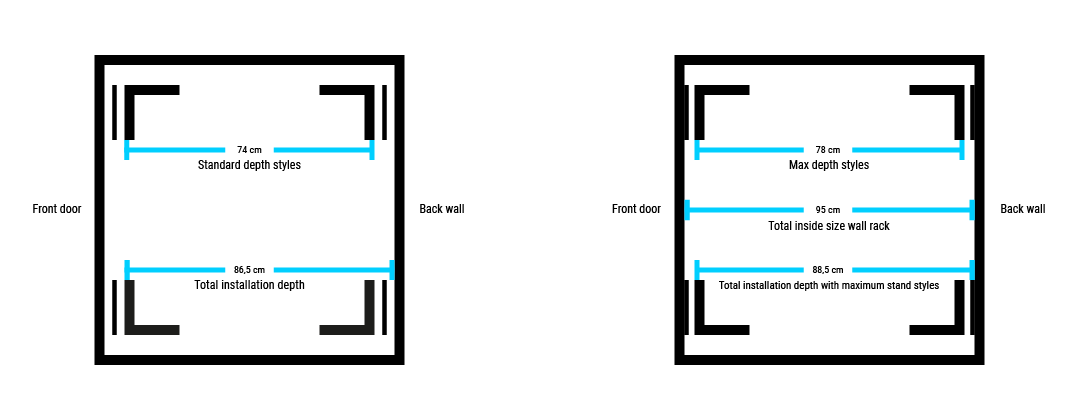

In the illustrations below, we indicate the maximum installation depth for each rack. On the left drawings, you see the attachment styles with the standard distance. On the right drawing, you see the maximum distance between the styles and the total interior size. Click the button below the drawing to view the respective wall rack in our shop.
Wall mount racks, swivel-monted 600 mm deep
Wall mount racks , total mounting 600 mm deep
Server racks and patch racks
Standing Server Rack 600mm Wide, 600mm deep
Standing Server Rack 600 mm wide, 800 mm deep
Standing Server Rack 600 mm wide, 1000 mm deep
Standing Server Rack 600 mm wide, 1200 mm deep
Standing Server Rack 800 mm wide, 800 mm deep
Standing Server Rack 800 mm wide, 1000 mm deep
Standing Server Rack 800 mm wide, 1200 mm deep
